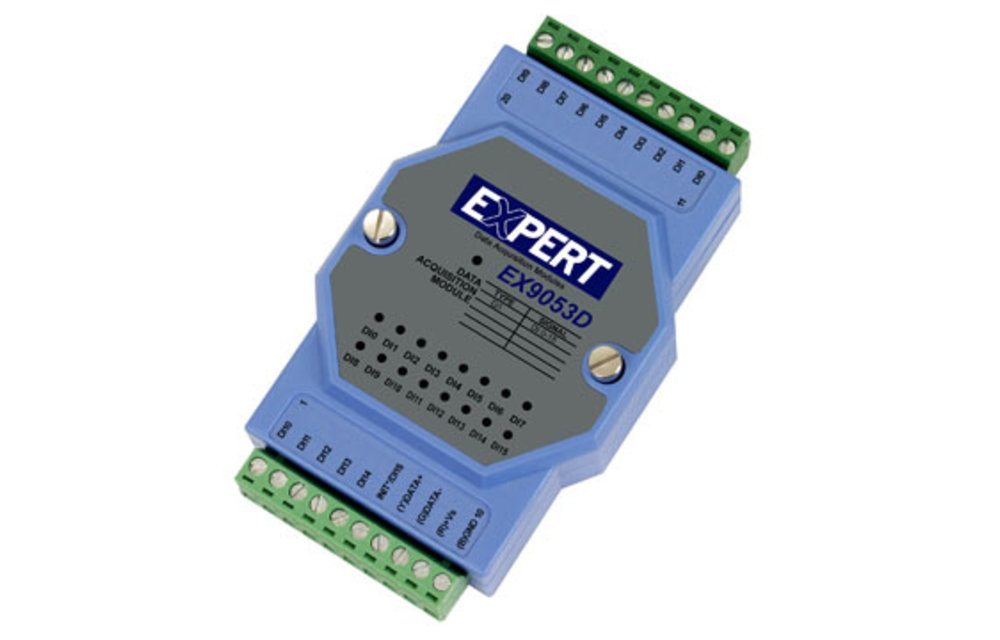

ExpertDAQ EX9053D - RS485 16 digital input module with status LED
ExpertDAQ Digital Input modules communicate via RS485 and are available with Modbus RTU. Within one RS485-network up to 256 modules may be controlled. Without a RS485 Repeater the maximum cable length is 1200m. The RS485 Digital IO module are sturdy, power saving and easy to use.
The EX9053D has 16 channels with a low input impedance. The Digital Input RS485 module has a LED-display for each channel and was developed for use in a wide temperature range.
Features:
| Interface | |
| Communication | RS485 |
| Speed | 300 - 115200 bps |
| Connector | Terminal Block |
| Protocol | ASCII |
| Input / Output | |
| Type | Digital input |
| Channels input | 16 |
| Digital-Input | |
| Channels | 16 single ended |
| Logic 0 | 0 to 2 V |
| Logic 1 | 4 to 30 V |
| Input impedance | 820 ohm |
| System | |
| Power max. | 0.9 W |
| Power input | 10~30V DC |
| Enclosure | |
| Mounting | Din Rail Mounting |
| Dimension | 100 x 70 x 25mm |
| Weight | 120g |
| Environment | |
| Operating temperature | -25~75°C |
| Storage temperature | -40~85°C |
| Certification | CE / FCC / WEEE / RoHS |
| Other | |
| included in delivery | Din Rail Mounting Kit |
