    Pt100, Class A, +250°C

    Brand: PIMZOS
    €23,-Excl. tax Product is in stock : We ship immediately !
    PT100, 4 wires, class A, SS316, diameter 6 mm + spring + 2000 mm PFA screened cable. Tmax : +250ºC... Show more
    2 variations PFH14109, Dimensions 6 x 150 mm
    • B2B Industrial Supplier since 1999
    • Shipping from our own warehouse in NL !
    • Shipping in EU with DPD Traceable
    • Reliable SSL & Secure Payments

    Product description

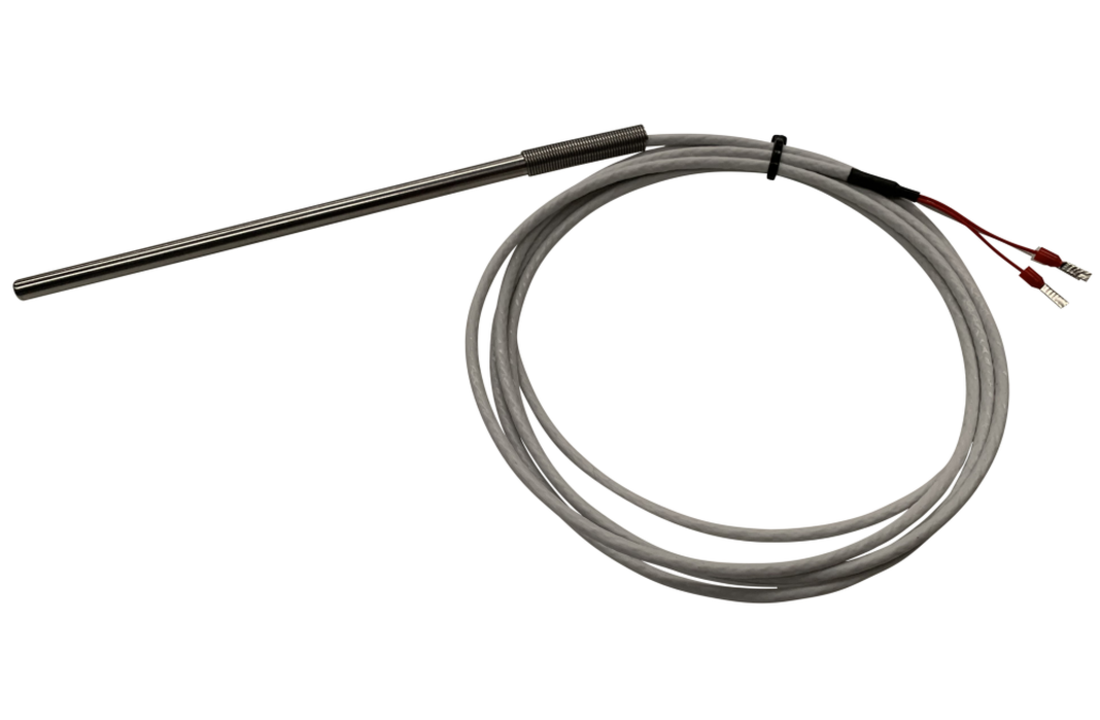

    PT100, 4 wires, class A, SS316, diameter 6 mm + spring + 2000 mm PFA screened cable. Tmax : +250°C

    2 variants : Probe Length 150 mm and 300 mm.

    Probe Type : RTD, Class A, 4wire
    RTD element type : Class "A" DIN Platinum Elements per IEC60751
    Nominal Resistance: 100 Ohm
    Probe Material : SS316 Stainless Steel Probe
    Probe Length: 150 or 300 mm below Potseal, zie variant
    Probe diameter : 6 mm
    Probe Temperature Range: -200°C to +250°C on measuring tip
    Cable to Probe transition : Clamped Tube, potted, with spring
    Cable : AWG stranded nickel-plated copper, PFA insulated, PFA jacketed cable, 4 x 0,22 mm2
    Cable Temperature Range :-200°C to +260 °C
    Cable Length: 2 meter
    Cable lead ends : Flying wire leads

    This is all data available, there is no PDF datasheet.

    We can also tailor these sensors to your wishes. (longer delivery time and different price)
