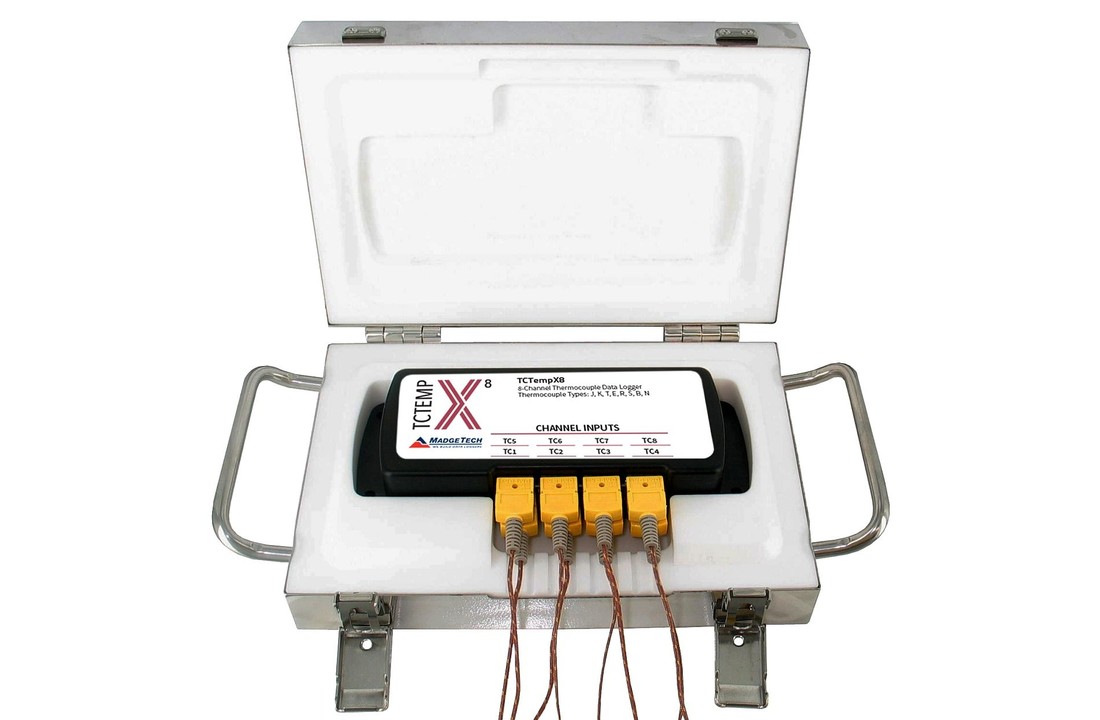

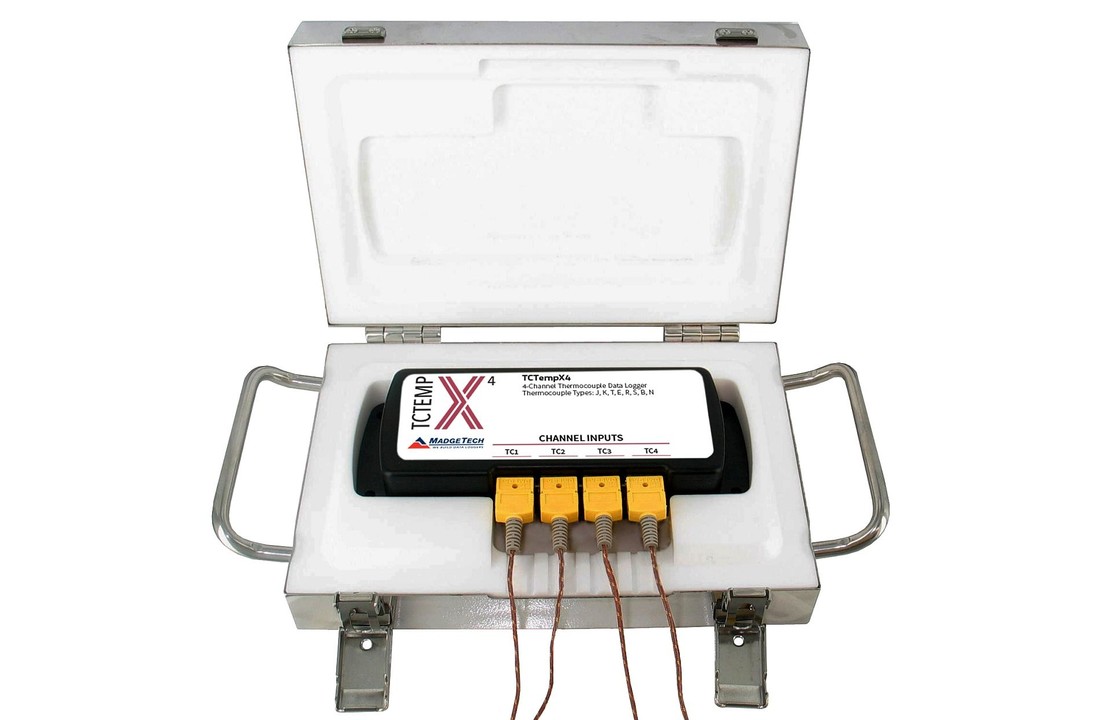

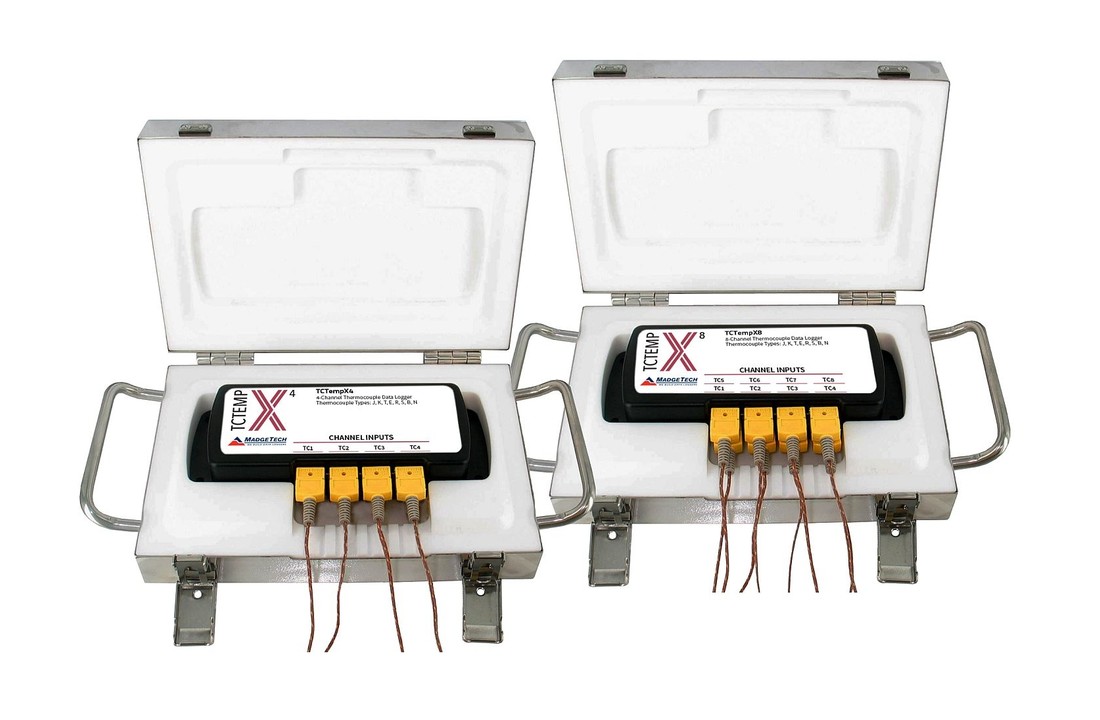

The ThermoVaultX Series is a thermally insulated, oven temperature recorder available with four or eight thermocouple channels.
Capable of withstanding extreme temperatures up to 350°C for up to 25 minutes when properly sealed, the external thermocouple probes provide accurate temperature measurements with fast response times. Its stainless steel enclosure and thermal properties lend itself to be the ideal temperature recording device for applications such as powder coating cure ovens, wet coating cure ovens, batch ovens and conveyor ovens.
The ThermoVaultX Series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 4-Channel: 524,032 readings per channel 8-Channel: 262,016 readings per channel |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Baud Rate | 460,800 baud |
| Cold Junction Compensation | Automatic |
| Channels | 4-Channel: 4 Internal & 4 Remote 8-Channel: 8 Internal & 8 Remote |
| Battery Life | 18 months typical |
| Dimensions | 4-Channel: 9.1 in x 5.9 in x 2.45 in (231 mm x 149 mm x 62 mm) [Enclosure case only. Excludes handles, brackets and latches] 8-Channel: 12.3 in x 6.65 in x 2.45 in (723 mm x 168 mm x 62 mm) [Includes handles, brackets and front enclosure latches] |
| Operating Environment | See Data Sheet, 0 %RH to 95 %RH, non-condensing |
| Required Interface Package | USB-A to micro USB cable |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (0 °C to 50 °C) |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
