      LabJack U6

      Merk: LabJack
      Toon alle LABJACK
      € 410,-
      € 389,50
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      €410,-
      €389,50Excl. btw Product is op voorraad : We versturen direct !
      Labjack U6, 16+ bits of resolution, Wide input range, Amazing price performace ratio... Toon meer
      +-
      Toevoegen aan winkelwagen
      • B2B Industrial Supplier since 1999
      • Shipping from our own warehouse in NL !
      • Shipping in EU with DPD Traceable
      • Reliable SSL & Secure Payments
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6
      LabJack U6

      Productomschrijving

      Download Datasheet Download PDF

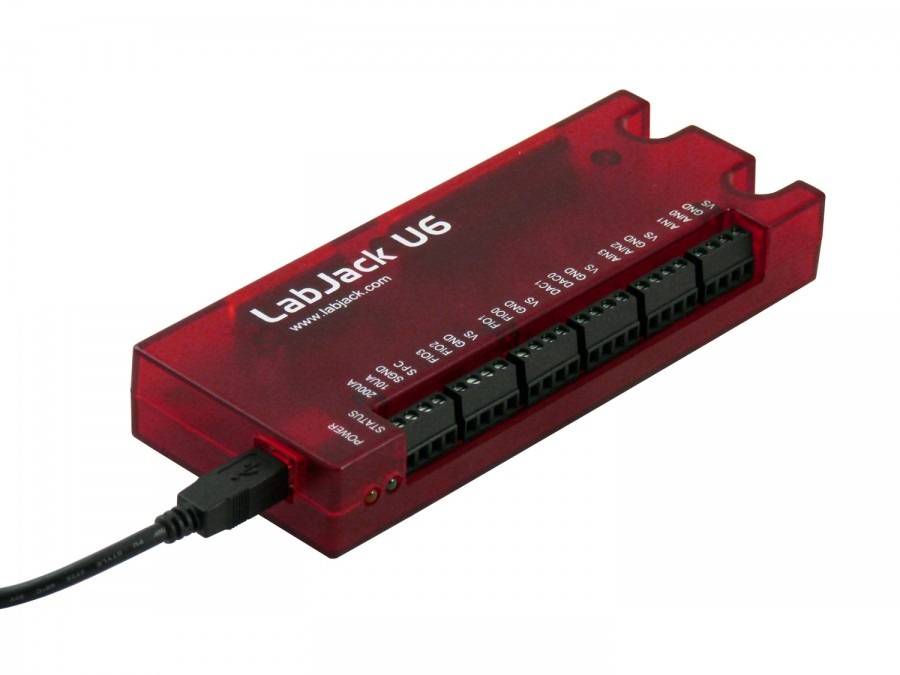

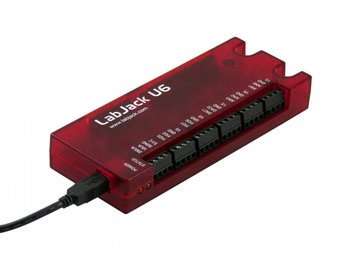

      LabJack U6 USB DAQ

      Features / Specifications :

      • 14 Analog Inputs (16-18+ Bits Depending on Speed)
      • U6-Pro Adds 24-bit Low-Speed ADC for 22-Bit Effective Resolution
      • Single-Ended Inputs (14) or Differential Inputs (7)
      • Instrumentation Amplifier Inputs
      • Software Programmable Gains of x1, x10, and x100
      • Analog Input Ranges of ±10, ±1, and ±0.1 Volts
      • Built-In CJC Temperature Sensor
      • 2 Fixed Current Outputs (200/10 μA)
      • 2 Analog Outputs (12-Bit, ~0-5 Volts)
      • 20 Digital I/O
      • Up to 2 Counters (32 Bits Each)
      • Up to 4 Timers (Pulse Timing, PWM Output, Quadrature Input, ...)
      • Supports SPI, I2C, and Asynchronous Serial Protocols (Master Only)
      • Supports Software or Hardware Timed Acquisition
      • Maximum Input Stream Rate of 50 kHz (Depending on Resolution)
      • Capable of Command/Response Times Less Than 1 Millisecond
      • Built-In Screw Terminals for Some Signals
      • USB 2.0/1.1 Full Speed Interface
      • Powered by USB Cable
      • Drivers Available for Windows, Linux and Mac.
      • Examples Available for C/C++, VB, LabVIEW, Python, and More
      • Includes USB Cable and Screwdriver
      • Free Firmware Upgrades
      • Money Back Guarantee
      • Enclosure Size Approximately 3" x 7" x 1" (75mm x 185mm x 30mm)
      • Rated for Industrial Temperature Range (-40 to +85 Degrees C)





      Specificaties

      Artikelnummer
      LabJack U6
      SKU
      LabJack U6
      LabJack U6
      € 410,-
      € 389,50
      Excl. btw
      LabJack U6
      LabJack U6
      Product is op voorraad : We versturen direct !
      Toevoegen aan winkelwagen
