Product highlights
The I-7561U-CR is made for the newer Windows versions 8/8.1 and Windows 10 (32/64-bit)
Also backwards compatible with older Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit) and 2012/Linux
If you run older Windows version, take model I-7561 CR
Serial to USB converter
1 RS-232/422/485 Port + 1 USB 1.1/2.0 Compliant Port
No External Power Supply required
I-7561: Baud Rate: 300 - 115200 bps
I-7561U: Baud Rate: 300 - 921000 bps
3000 VDC Isolation Protection on the RS-232/422/485 side
Driver Support:
I-7561: Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/Linux
I-7561U: idem + Windows 8/8.1 and Windows 10

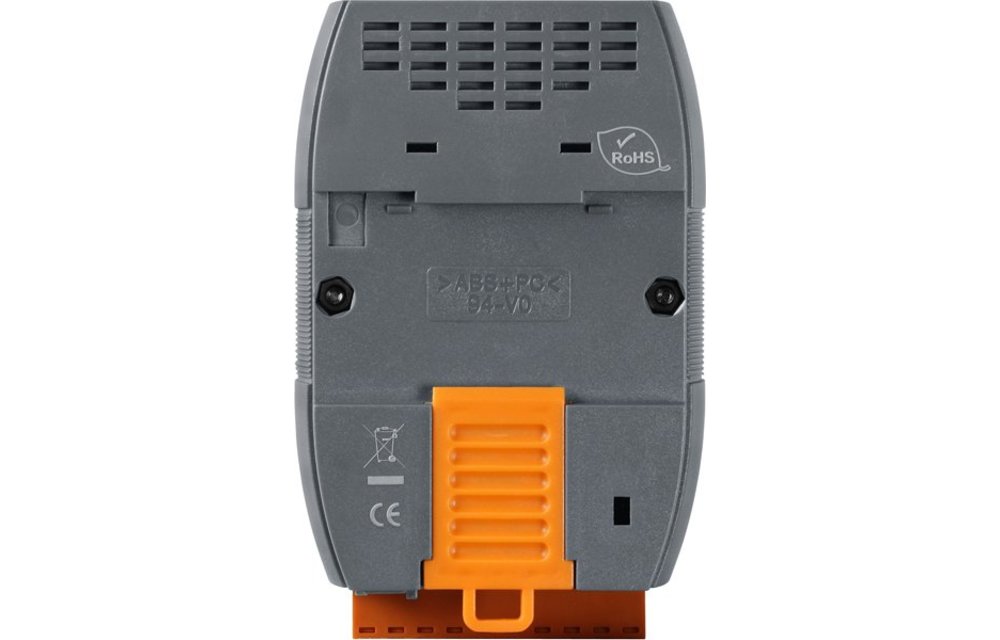

DIN-Rail mountable

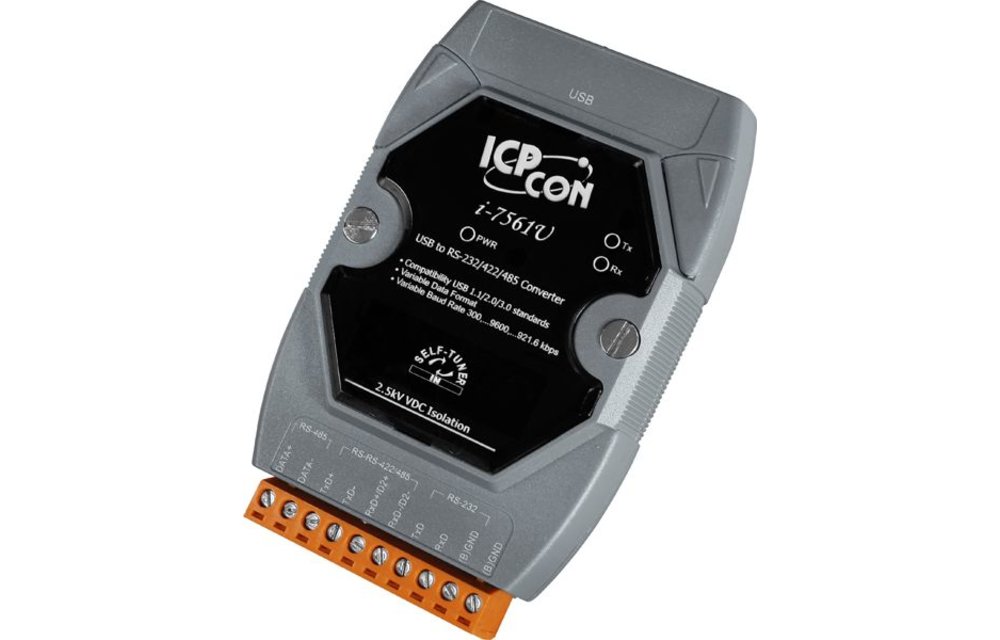

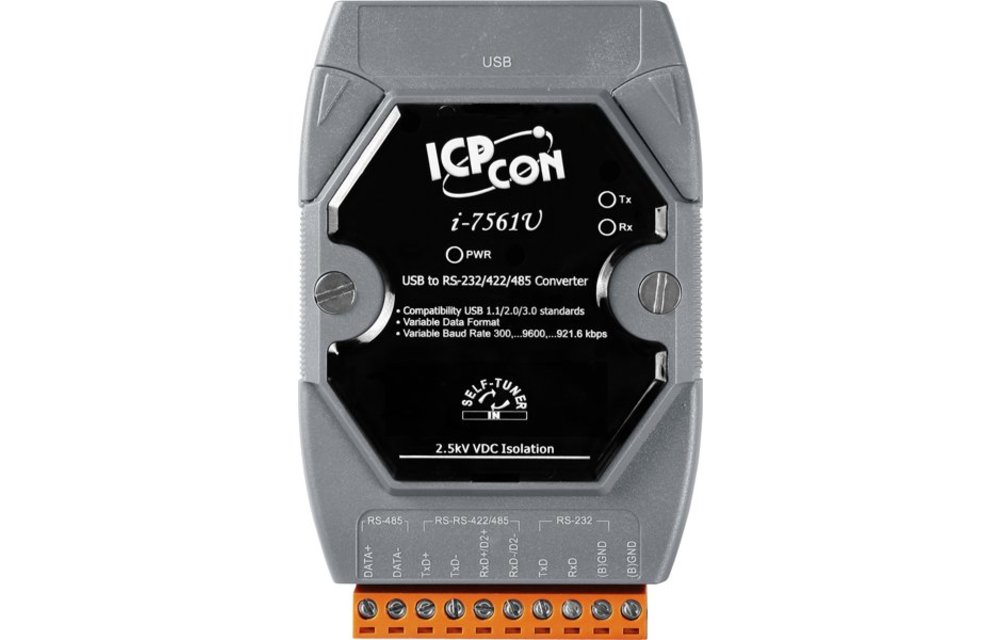

The I-7561U-CR is a cost-effective serial to USB Converter. It offers a comfortable and reliable solution to connect serial devices with RS-232, RS-422 or RS-485 interface to systems equipped with a USB Port. Hence, connecting the I-7561U-CR to a PC means adding an RS-232/422/485 port to the computer.
With the embedded "Self-Tuner" ASIC, the I-7561U-CR can automatically detect the Baudrate (Max: 115200 kbps) and data format of the RS-485 network. The I-7561U-CR module is directly powered from the USB port, therefore no extra power adapter is required.
The driver is provided on a CD, and is compatible with the standard operating system.
